Our builds.
Your possibilities.

FROM FRAME TO FINISHED EQUIPMENT

A closer look.

Gas batch oven

Example of an oven chamber and gas heating assembly. Final dimensions and heating specification vary by build.

Top-hung oven system

Example of an oven with overhead rail and support arrangement.

Single batch trolley

Removable rack and transfer trolley aligned with the oven entry.

Multi rack oven arrangement

Example of two racks positioned inside the curing chamber.

Custom hanging racks

Multiple hanging levels and mobile rack arrangements.

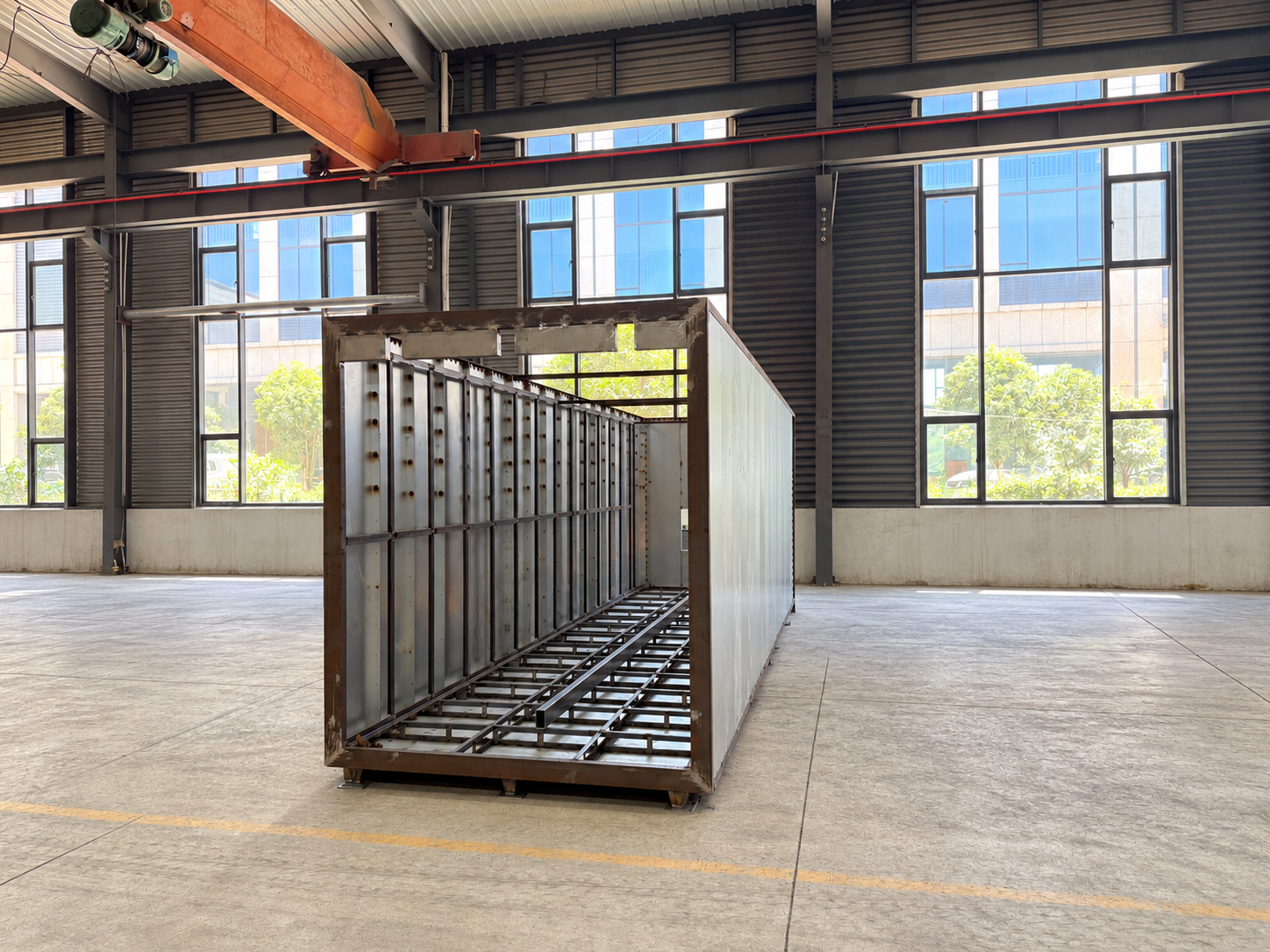

Oven construction

Unfinished chamber frame and base during construction.

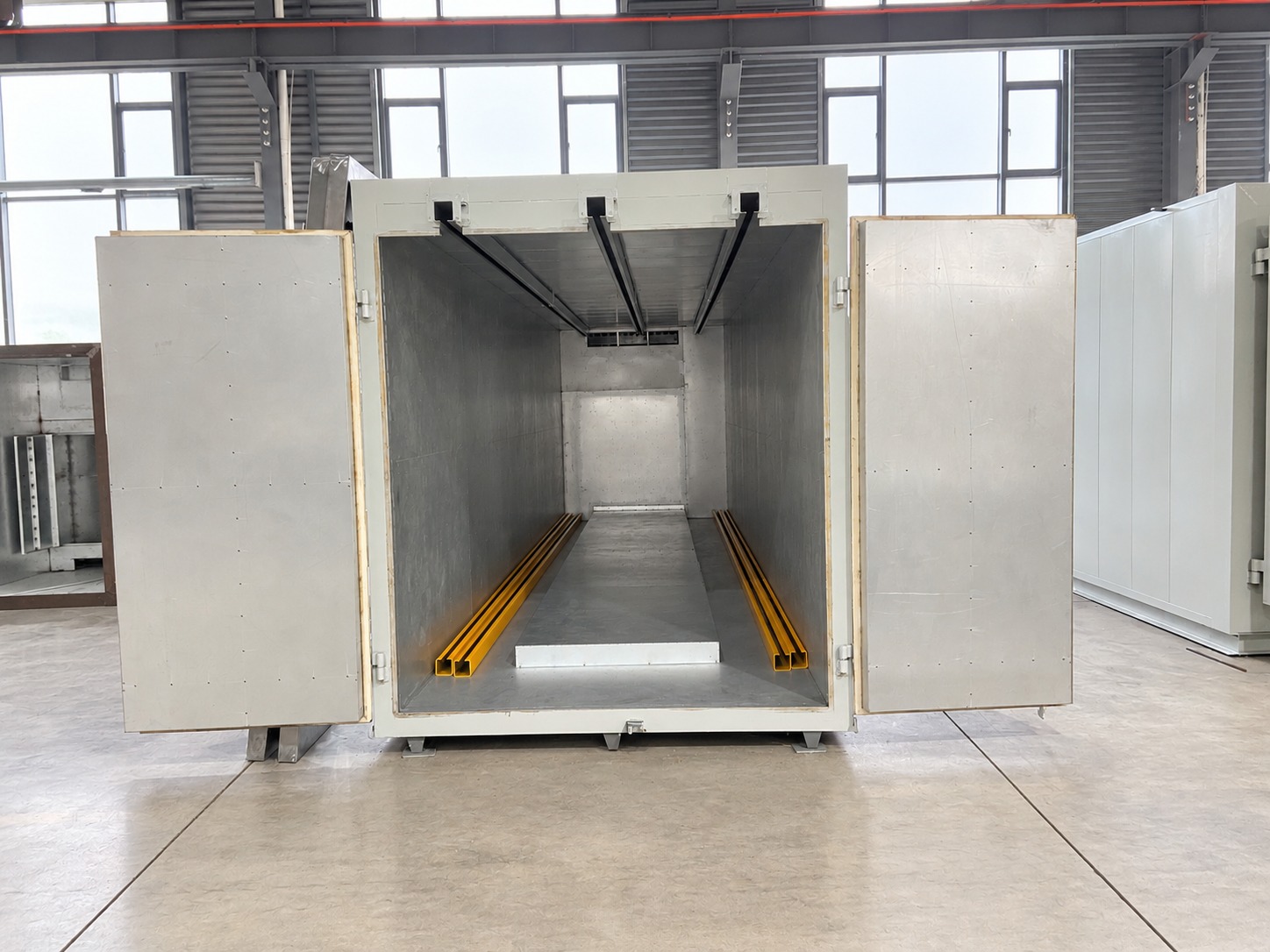

Overhead rails inside the chamber

Open oven chamber showing the overhead rails and the internal loading arrangement.

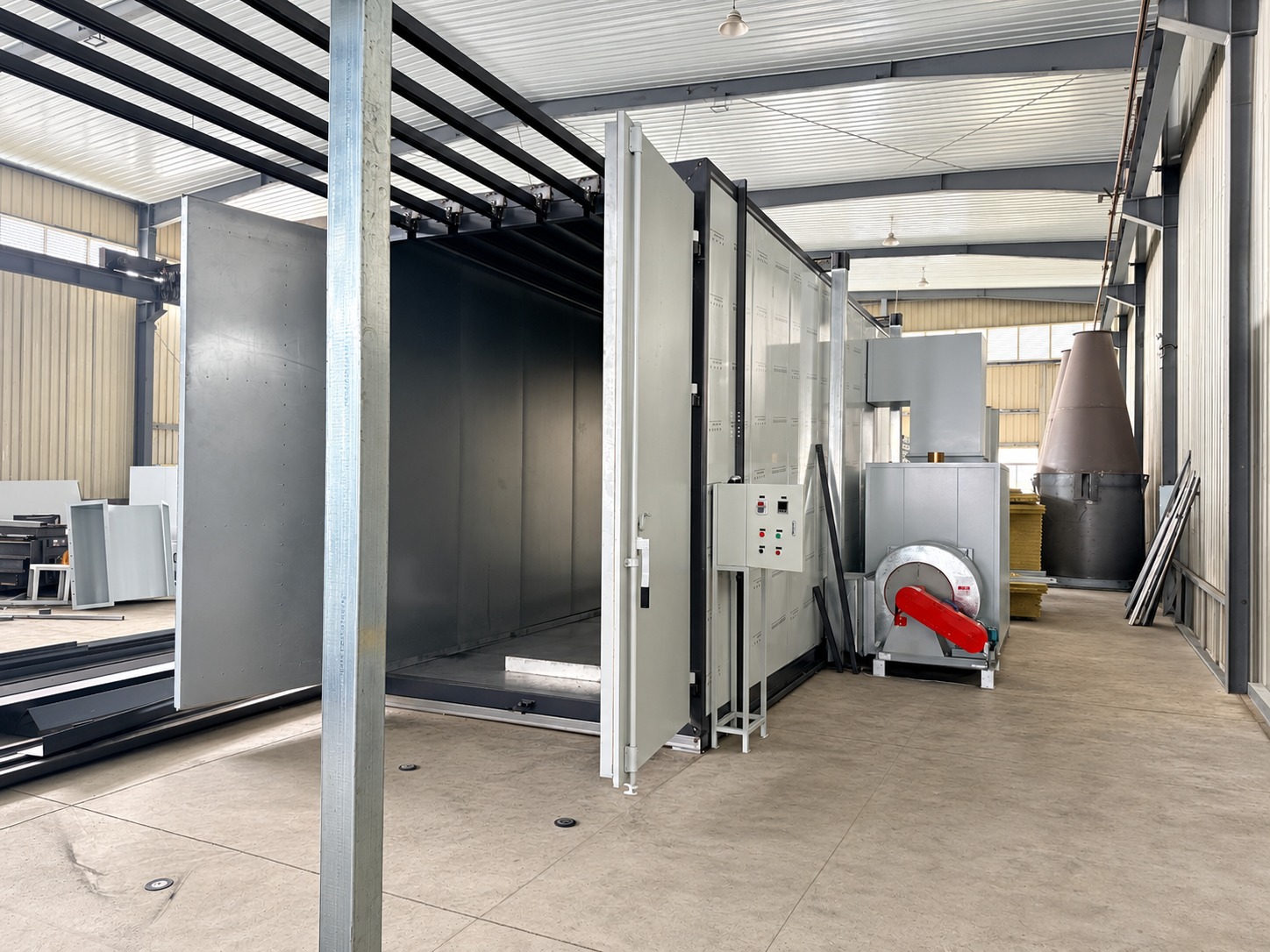

Top hung system from the side

Side view showing the rail supports, oven entry and heating assembly during the build.

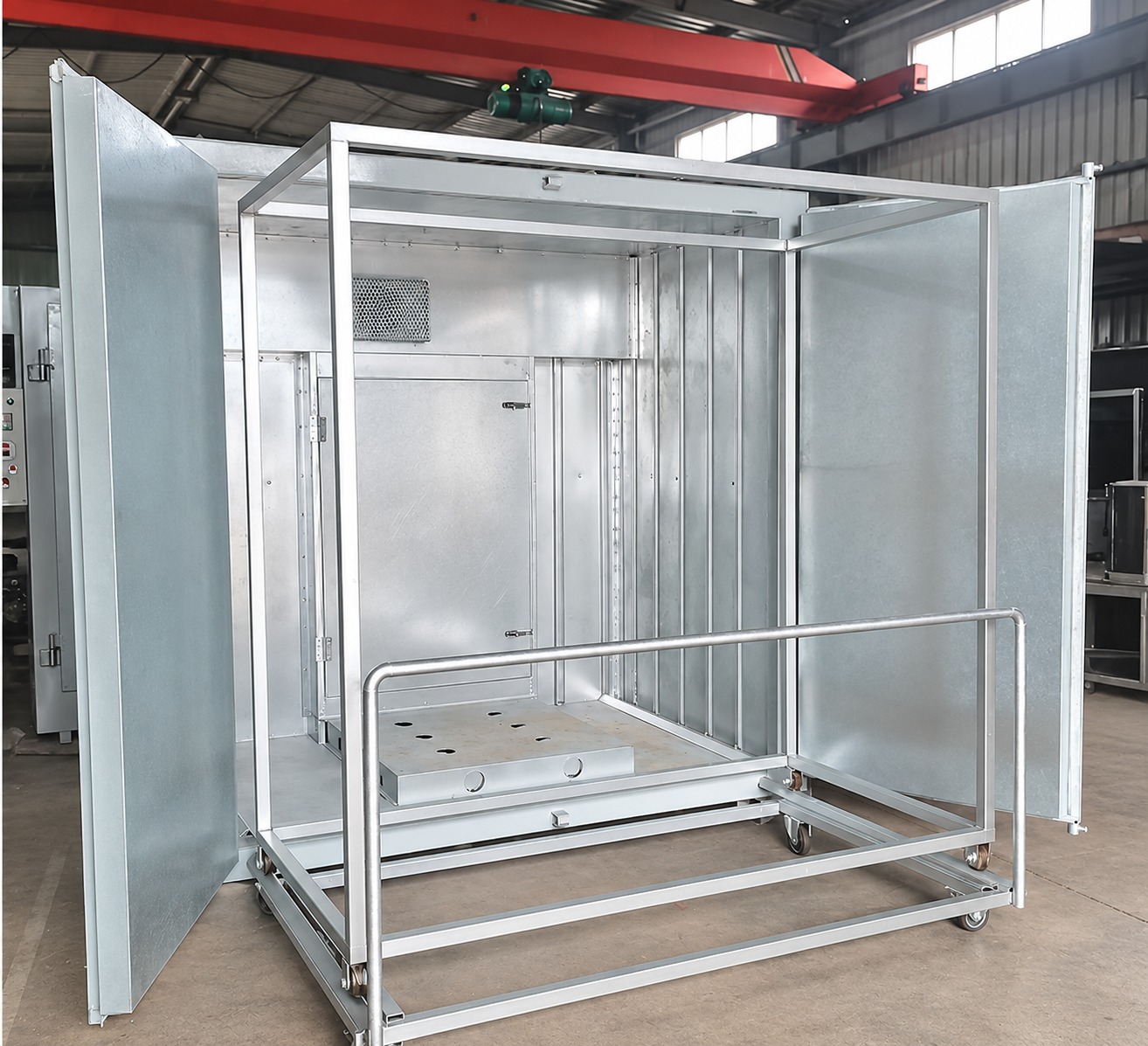

Side loading batch oven

Open chamber with a mobile hanging rack and trolley positioned at the oven entry.

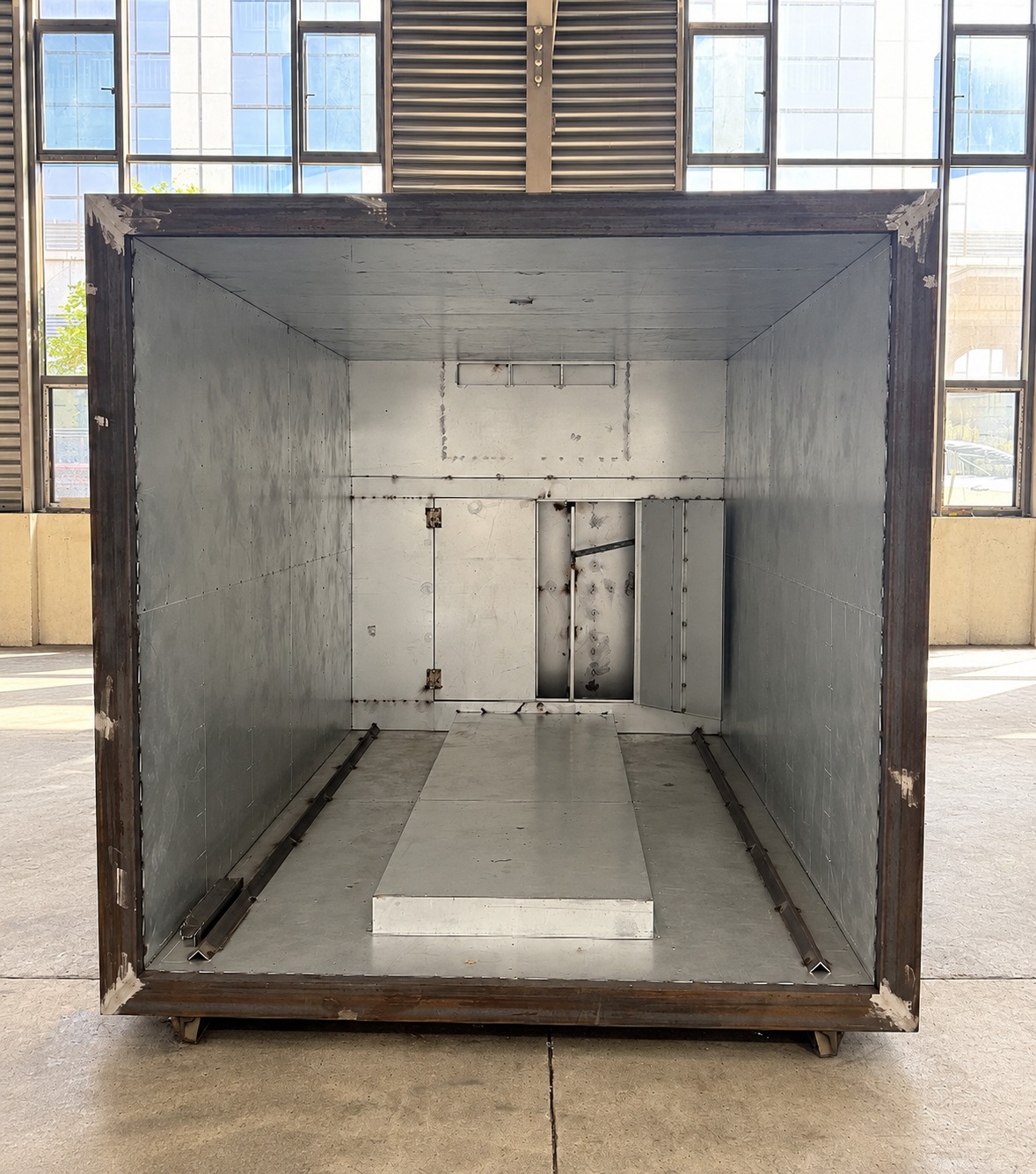

Chamber lining during assembly

Interior wall and ceiling panels, floor rails and the chamber base during assembly.

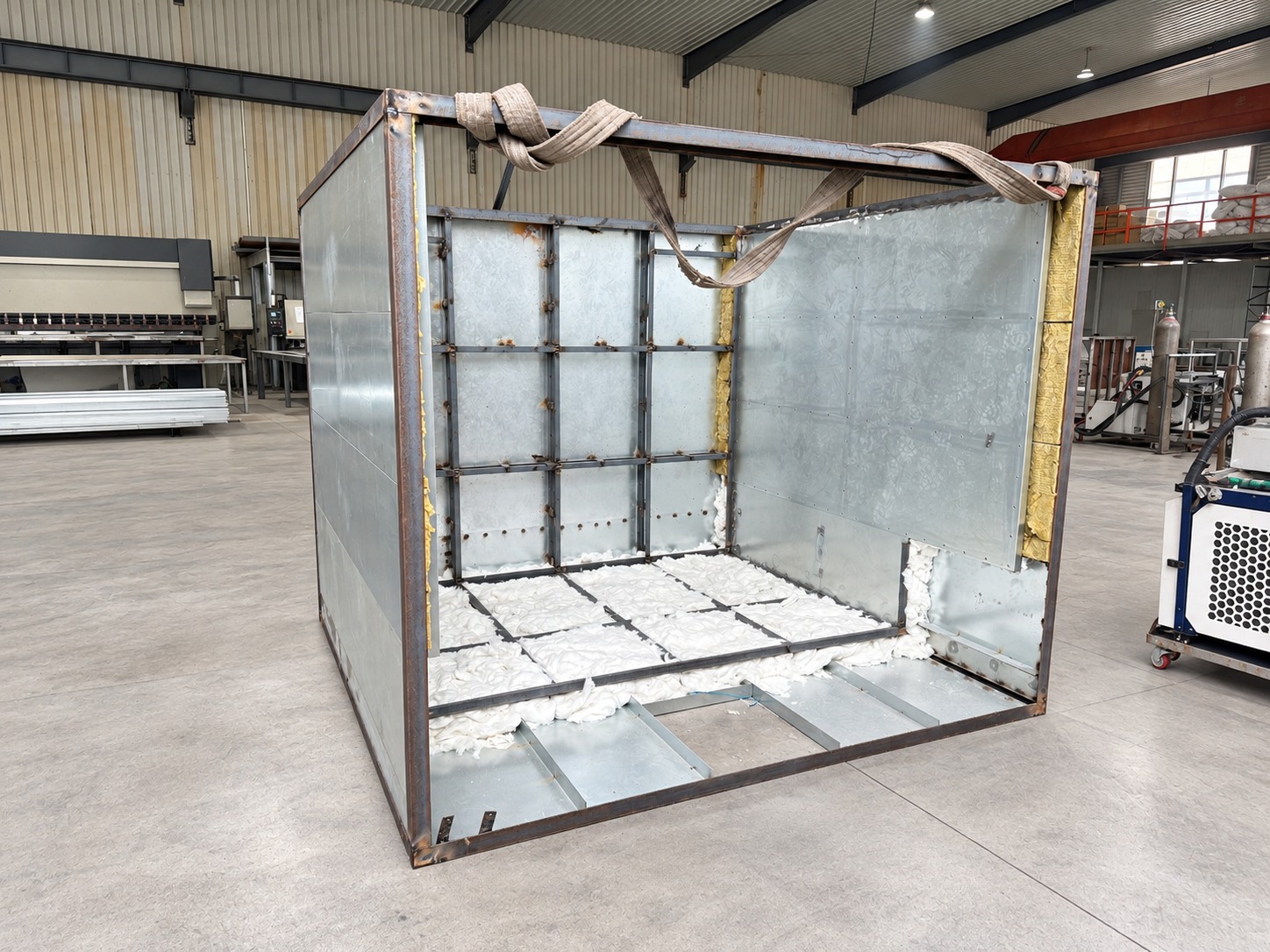

Insulation and chamber assembly

A construction view showing the chamber structure and exposed insulation before assembly is complete.

Select a category to explore the photos, or select an image to enlarge it. Selected backgrounds have been cleaned for presentation. Photos show example configurations and construction stages; final dimensions, equipment and supply inclusions are confirmed for each order.
