POWDER COATING OVENS AUSTRALIA

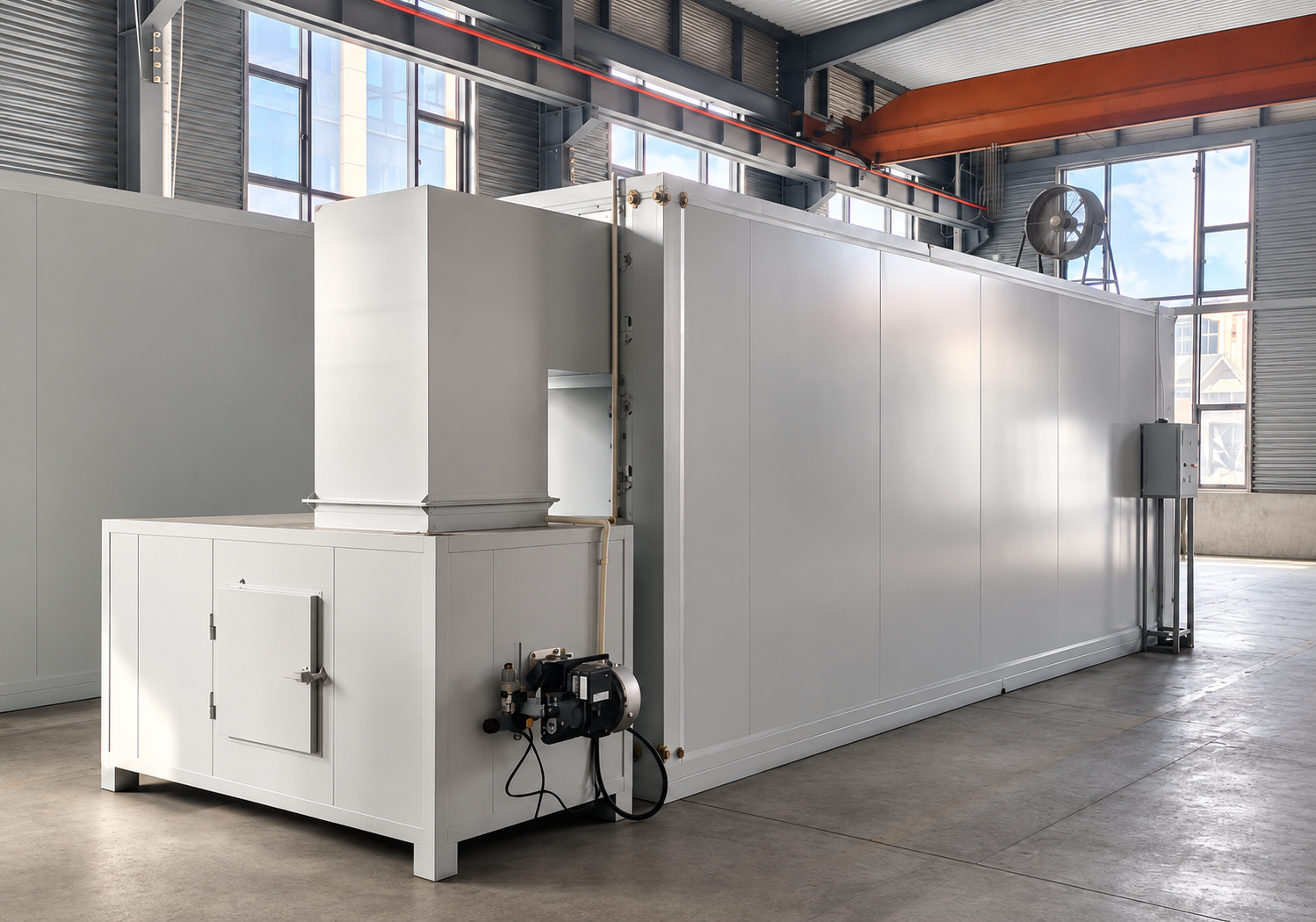

An oven that fits
the way you work.
Electric and gas powder coating ovens, built around your parts, available space and production requirements.
OVEN RANGE
Explore your oven options.
Custom batch ovens
Configure your internal working dimensions, heating and loading arrangement.
EXPLORE ↗ELECTRICElectric ovens
Three phase electric heating, matched to your oven specification.
EXPLORE ↗GASGas ovens
Gas fired systems configured around chamber size and production requirements.
EXPLORE ↗TROLLEYSTrolley & rack systems
Load outside the oven and transfer the complete batch inside.
EXPLORE ↗Built to your specification.
| Heating | Three phase electric or gas fired, as specified |
|---|---|
| Temperature | Up to 300°C depending on the final specification |
| Insulation | 100–150 mm insulated panels with high density rock wool, depending on size and heat requirements |
| Circulation | Forced air circulation |
| Controls | Digital control box or PLC touchscreen options, depending on the agreed configuration |
| Construction | Assembled units within 1900 mm internal width and 2100 mm internal height; larger sectional builds available, subject to design and transport arrangements |
| Trolleys | Custom batch trolley systems available |
Features vary by final specification. We confirm your configuration and electrical or gas requirements in the written quote.
AVAILABILITY
Looking for an oven available now?
Check our in stock and clearance category for current oven and equipment enquiries. Call us to confirm the specification, price and freight arrangements for available items.
DIGITAL OR TOUCHSCREEN
Choose your oven controls.
Digital control box
A digital temperature controller with the controls and indicators specified for your oven. This gives the operator a clear place to set and monitor the operating temperature.

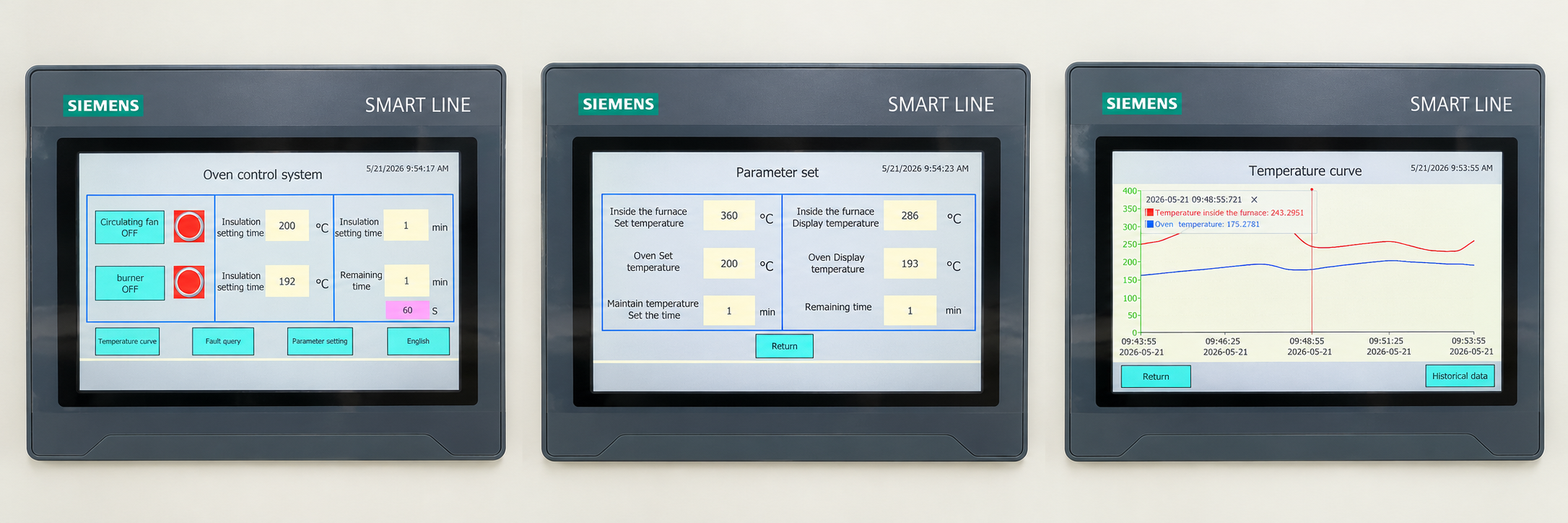

PLC touchscreen option
A programmable logic controller (PLC) paired with a touchscreen can bring the oven’s operating information and settings together on one display. Screen functions are confirmed for the selected control system.
Set & monitor
Set temperature and view displayed temperature readings, hold time and remaining time on the example screens.
Operating status
The overview shown includes circulating fan and burner status, with menus for parameter settings and fault enquiries.
Temperature trend
The example temperature curve screen shows readings over time and a historical data menu.
Control hardware, screen layout, available functions and sensor configuration vary by the agreed specification. Ask us to include your preferred controls in the quote.
BUILD & TRANSPORT
Assembled units or sectional supply.
Assembled units
Assembled units can be supplied within 2100 mm internal height and 1900 mm internal width. The internal length, final construction and transport arrangements are confirmed for each order.
Larger chambers
For larger internal dimensions, sectional supply can be discussed. Sections are assembled on site, with drawings and instructions supplied. Workshop access and installation arrangements need to be planned before ordering.
These are internal chamber measurements. The external oven dimensions and space needed for loading, doors and service access will be larger.
YOUR NEXT STEP
Planning a new setup or upgrading?
Tell us what you coat, your required internal oven size and your location. We’ll help put together a suitable system.
REQUEST A QUOTE ↗
